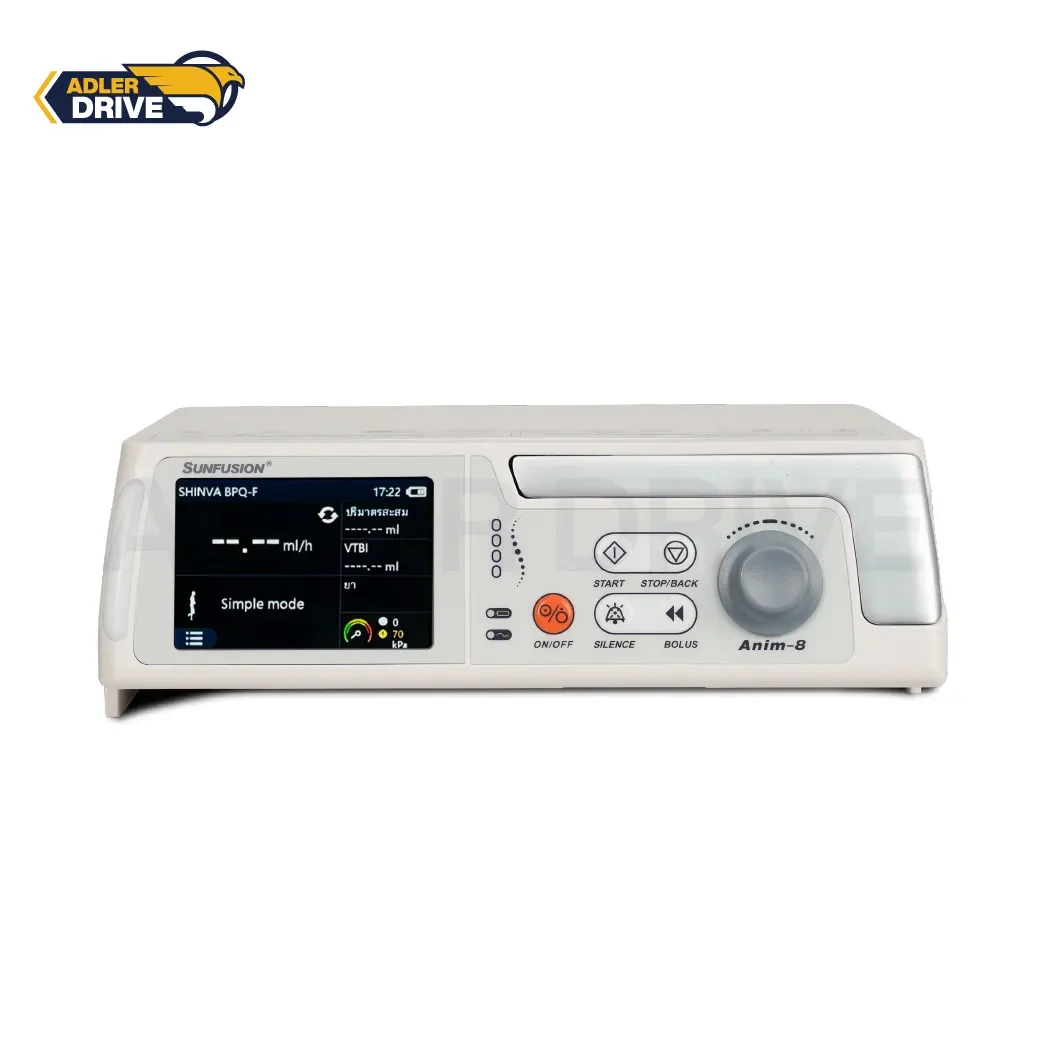

Beyond Sunfusion Serial Infusion Pump
Attribute:
SKU : ANIM
The Beyond Sunfusion Serial Infusion Pump is a reliable medical device designed for accurate and controlled intravenous fluid delivery. It provides precise infusion management for hospitals, clinics, and healthcare facilities with enhanced safety and performance.
Categories : เครื่องติดตามสัญญาณชีพ ,
Share
Beyond Sunfusion Serial Infusion Pump
Medical Device License No. 683/2568
A volumetric infusion pump equipped with all necessary accessories, meeting specified technical requirements.
1. Designed for patients—including infants—requiring controlled intravenous administration of fluids or nutrients.
2. Used to control medication administration where high precision in intravenous dosage is required.
3. Reduces risks associated with fluid overload or insufficient delivery in certain types of critically ill patients.
Operational Necessity
This device is designed for the precise control of intravenous medication or fluid administration, particularly for patients requiring specialized care.
Intended Use
- Used to control the intravenous administration of fluids or nutrients.
- Used to control the intravenous administration of medications requiring high dosage precision.
General Specifications
- Device dimensions: 183 x 248 x 83 mm.
- Device weight: 2.0 kg.
- Power source: AC 100–240 V.
- Frequency: 50/60 Hz.
- Power rating: 25 VA.
- Battery:
- Lithium type, 11.1V, capacity > 2600 mAh.
- Continuous operation: Approx. 7 hours at a flow rate of 25 ml/h.
- Operation time: > 5 hours at a flow rate of 2000 ml/h.
- Compatibility with other equipment. Compatible with at least 14 types of standard IV administration sets.
✅ Class I
✅ Type CF
✅ IP24
Technical Specifications of the IV Infusion Pump
The device offers various operating modes to suit specific treatment needs and ensure precise control over medication or fluid delivery. Supported modes include:
Simple Mode
A basic operating mode allowing for easy setting of a constant flow rate.
Drop/min Mode
Sets the infusion rate in "drops per minute," suitable for general fluid administration.
Vol/T Mode (Volume over Time)
Sets the total volume to be infused within a specified timeframe.
Vol/W Mode (Volume per Weight)
Calculates the infusion volume based on the patient's body weight for maximum treatment accuracy.
Sequential Mode
Configures the device to operate in a specific sequence or in stages—for example, administering multiple types of fluids consecutively.
Micro Mode
Used for administering nutrients or medications in very small quantities (micro-infusion).
Intermittent Mode
Delivers fluids in intervals, with pauses at specified durations.
Ramp Up/Down Mode
Gradually increases or decreases the flow rate to minimize impact on the patient's circulatory system.
First Dose Mode
A specialized mode for administering an initial dose of medication or fluid, allowing for specific volume settings.
TIVA Mode (Total Intravenous Anesthesia)
For administering total intravenous anesthesia without relying on inhaled anesthetics, enabling precise control over the depth of anesthesia. Flow Rate Settings
ml/h Mode:
Flow rate range: 0.1 – 2000 ml/h; adjustable in 0.01 ml/h increments.
Drop/min Mode:
Range: 1 – (400 ml/h × d ÷ 60) d/min; adjustable in 1 d/min increments.
Bolus Administration
Bolus Rate:
Setting range: 0.1 – 2000 ml/h; adjustable in 0.01 ml/h increments.
VTBI (Volume to be Infused):
Setting range: 0.1 – 50 ml; adjustable in 0.01 ml increments.
Fast Forward (FF) Mode
FF Rate:
Setting range: 0.1 – 2000 ml/h; adjustable in 0.01 ml/h increments.
VTBI:
Setting range: 0.1 – 9999.99 ml; adjustable in 0.01 ml increments.
KVO (Keep Vein Open) Mode
Auto KVO:
Automatic mode; no additional parameter adjustments possible.
Manual KVO:
KVO Rate: 0.1 – 5.0 ml/h; adjustable in 0.01 ml/h increments.
VTBI: 0.1 – 1 ml; adjustable in 0.01 ml increments.
VTBI (Volume to be Infused)
Setting range: 0.1 – 9999.99 ml; adjustable in 0.01 ml increments.
Total Volume Accumulated
Setting range: 0.1 – 9999.99 ml; adjustable in 0.01 ml increments.
Changing Flow Rate During Operation
Flow rate can be changed while the device is operating, without needing to stop the operation first. Flow Rate Accuracy
When flow rate > 1 ml/h: Accuracy within ±3% (after calibration)
When flow rate < 1 ml/h: Accuracy within ±5% (after calibration)
Pressure Units
Selectable from 6 pressure units:
- MPa
- mmHg
- inH₂O
- psi
- mbar
- kPa
- Occlusion Level Setting
13 selectable occlusion detection levels; adjustable range: 10 – 130 kPa
Air Bubble Detection
Configurable air bubble detection settings:
Single Bubble:
Selectable sizes: 25, 50, 100, 200, and 300 µL
Accumulated/Mixed Bubbles:
Selectable sizes: 100, 500, 1000, and 1500 µL
Alarm & Alert Functions
The device detects and alerts the user to various anomalies or status conditions requiring attention to ensure operational safety, including:
Near End of Infusion
Infusion Completed
Preparation Complete
Upstream Occlusion
Downstream Occlusion
KVO Completed
Door Open
Air bubble detected in the line (Air-in-line)
Forgotten Operation
Low Battery
Battery Empty
System Malfunction
Power Failure
Change IV Set
Drop Sensor Disconnected
Empty Solution Bottle
