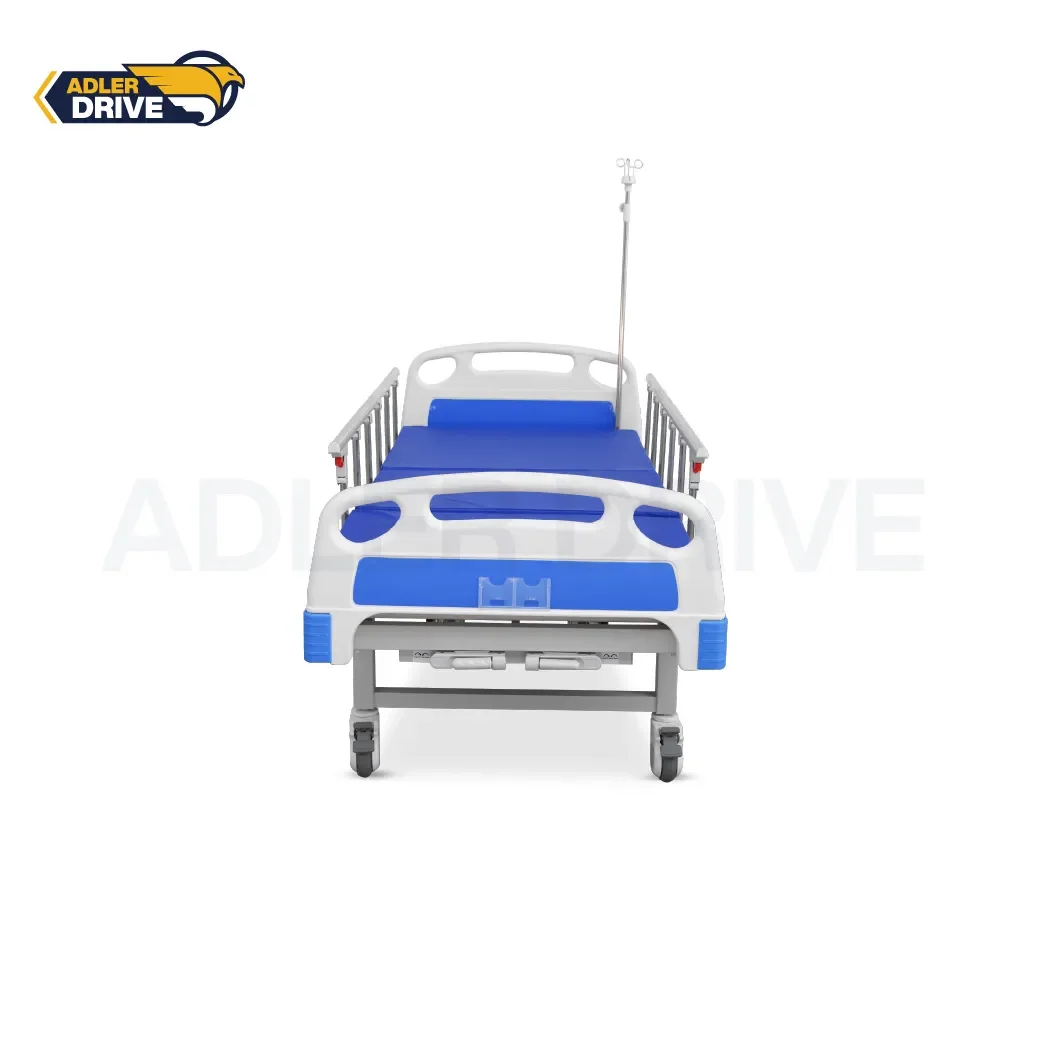

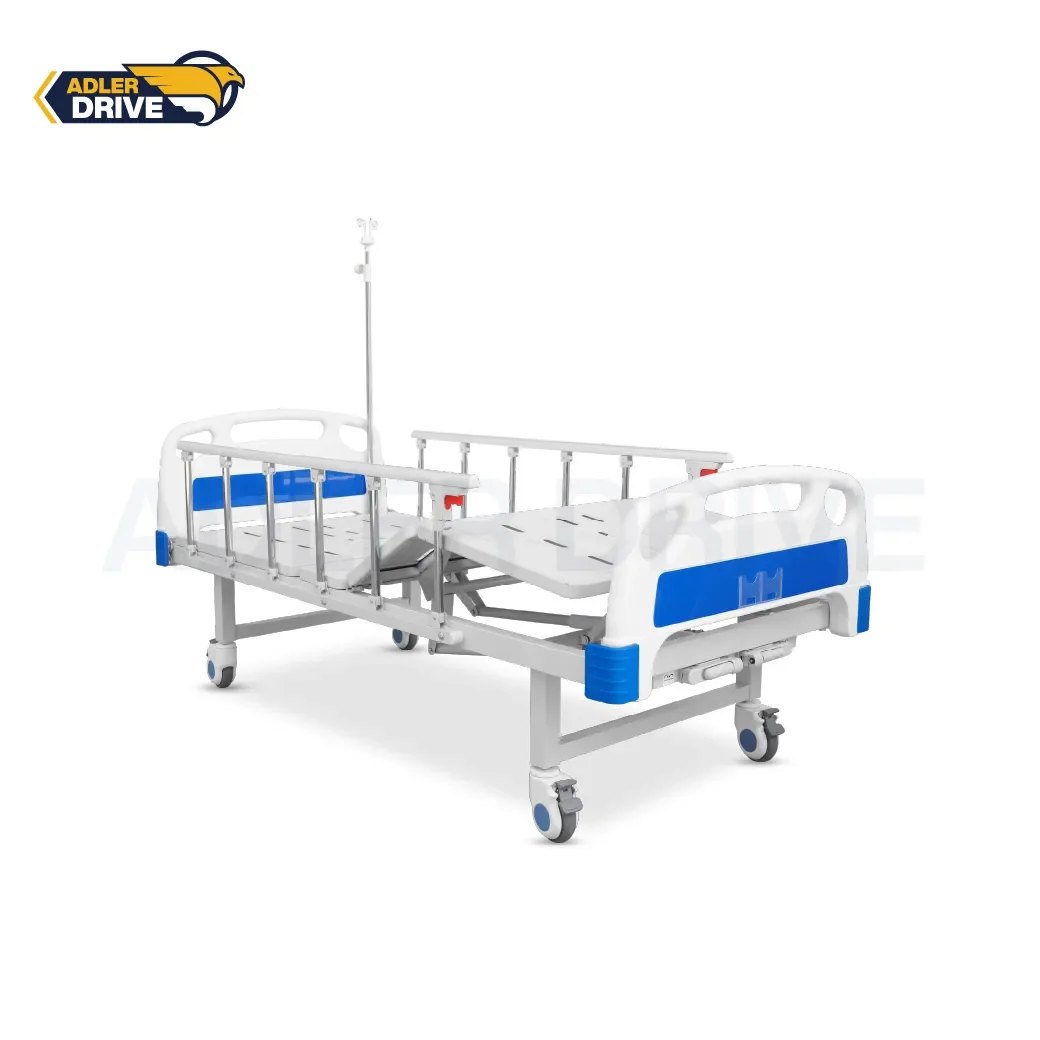

Huaren HR-S07 2-Function Manual Hospital Bed

HR-S06 3-Function Manual Hospital Bed for Elderly & Home Care

Medical Device Advertising License No : ฆพ.2266/2568
Medical Device Registration No : 68-2-3-2-0008789

Bed Dimensions

• Overall Width: 95 ±3 cm

• Overall Length: 210 ±3 cm

• Fixed bed height: 50 cm

Weight Capacity

• Maximum Weight Capacity: Supports up to 200 kg, providing stable, secure, and reliable support for patients, elderly users, and long-term care.

Free Accessories Included

• Free foldable mattress specially designed for this bed model
• Free IV pole

• Free premium bed sheet (1 piece)

• Free waterproof mattress protector (1 piece)

Design & Construction Features

• The bed frame is made of high-quality metal, coated with rust-resistant paint and finished with a powder coating system.

• The bed base measures at least 90 x 192 ± 5 centimeters, made of thick metal (over 1 mm), stamped and reinforced with a grid structure on the back to prevent warping. It is divided into 4 sections:
  - Back panel: (Width x Length) 75 x 90 ± 5 centimeters
  - Hip section: (Width x Length) 22 x 90 ± 5 centimeters
  - Thigh section: (Width x Length) 33 x 90 ± 5 centimeters
  - Leg section: (Width x Length) 54 x 90 ± 5 centimeters

• 40 ventilation holes in a stadium shape, measuring 8 x 2 centimeters and 13 x 2 centimeters, are drilled into the mattress to allow for good air circulation. Prevents stuffiness while sleeping.

• The bed rails are rectangular in shape, made of aluminum, with 6 slats spaced 24 centimeters apart. The length is at least 145 ± 5 centimeters, and the height is more than 40 ± 5 centimeters. The distance between the headboard and the rail is 20 ± 5 centimeters, and the distance between the footboard and the rail is 51 ± 5 centimeters, to prevent the patient from falling out of bed.

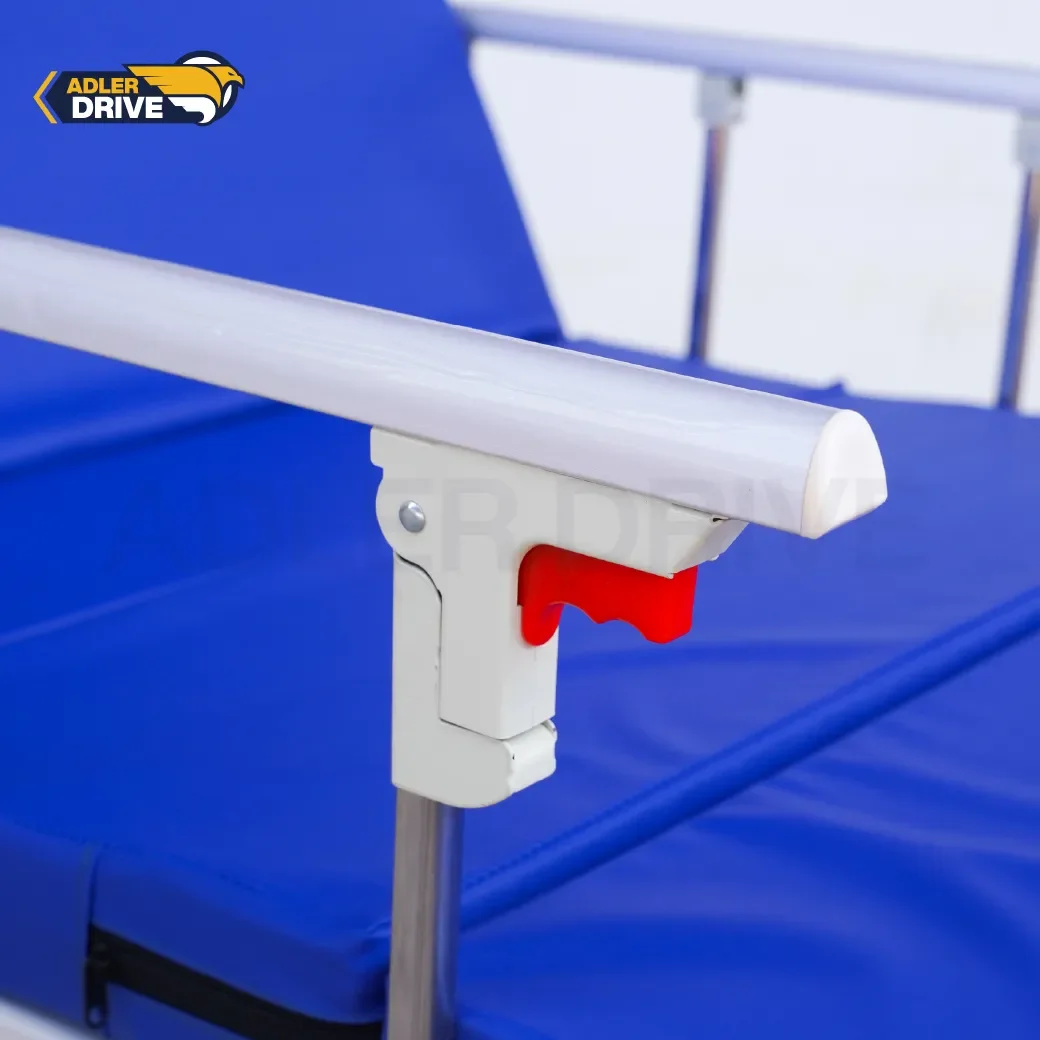

• The bed rails can be folded up/down parallel to the bed, with a red locking/unlocking lever.

• The headboard dimensions are (width x height) 93 x 39 ± 5 centimeters, and the footboard dimensions are (width x height) 93 x 32 ± 5 centimeters. They are made of strong, durable, and lightweight Acrylonitrile Butadiene Styrene (ABS) plastic. The headboard can be removed without additional tools, for easier cleaning for both the patient and caregiver.

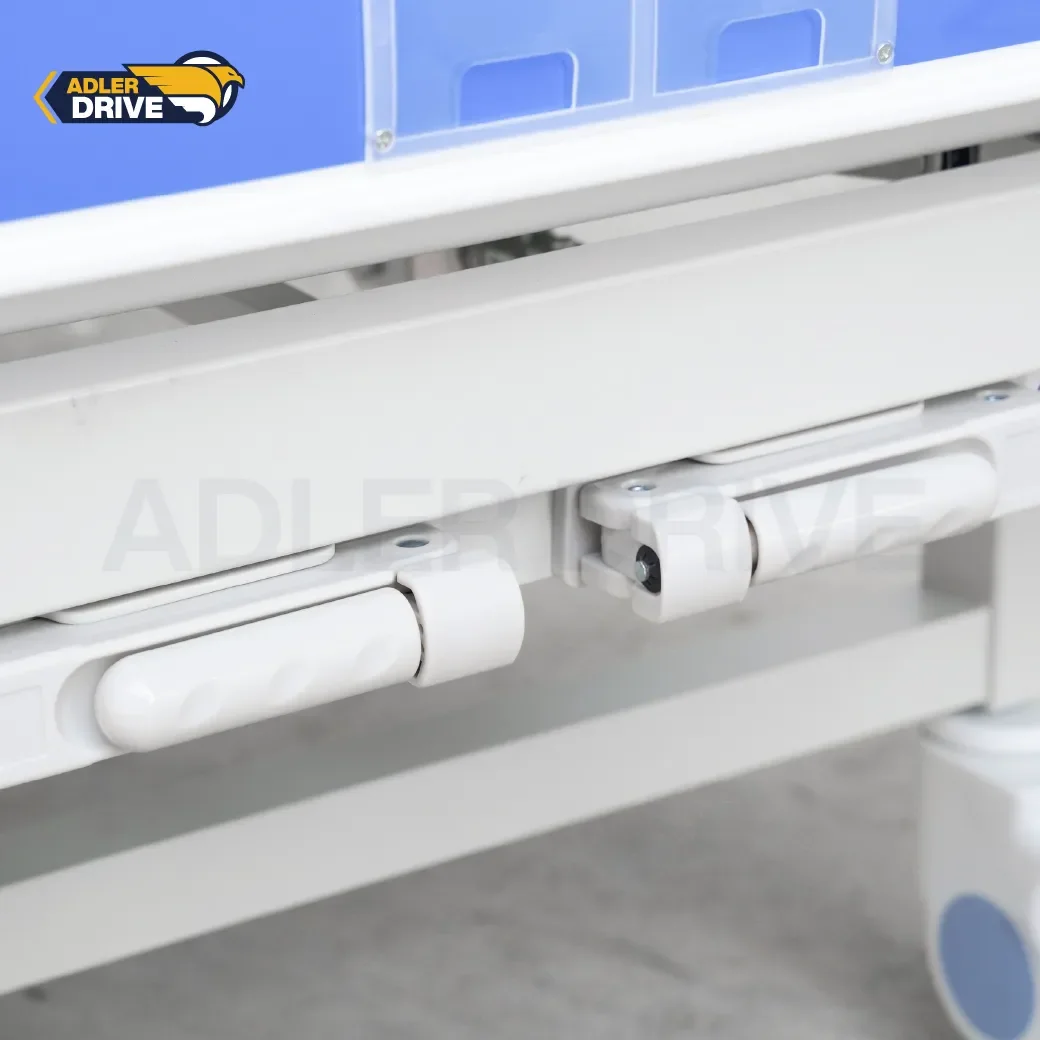

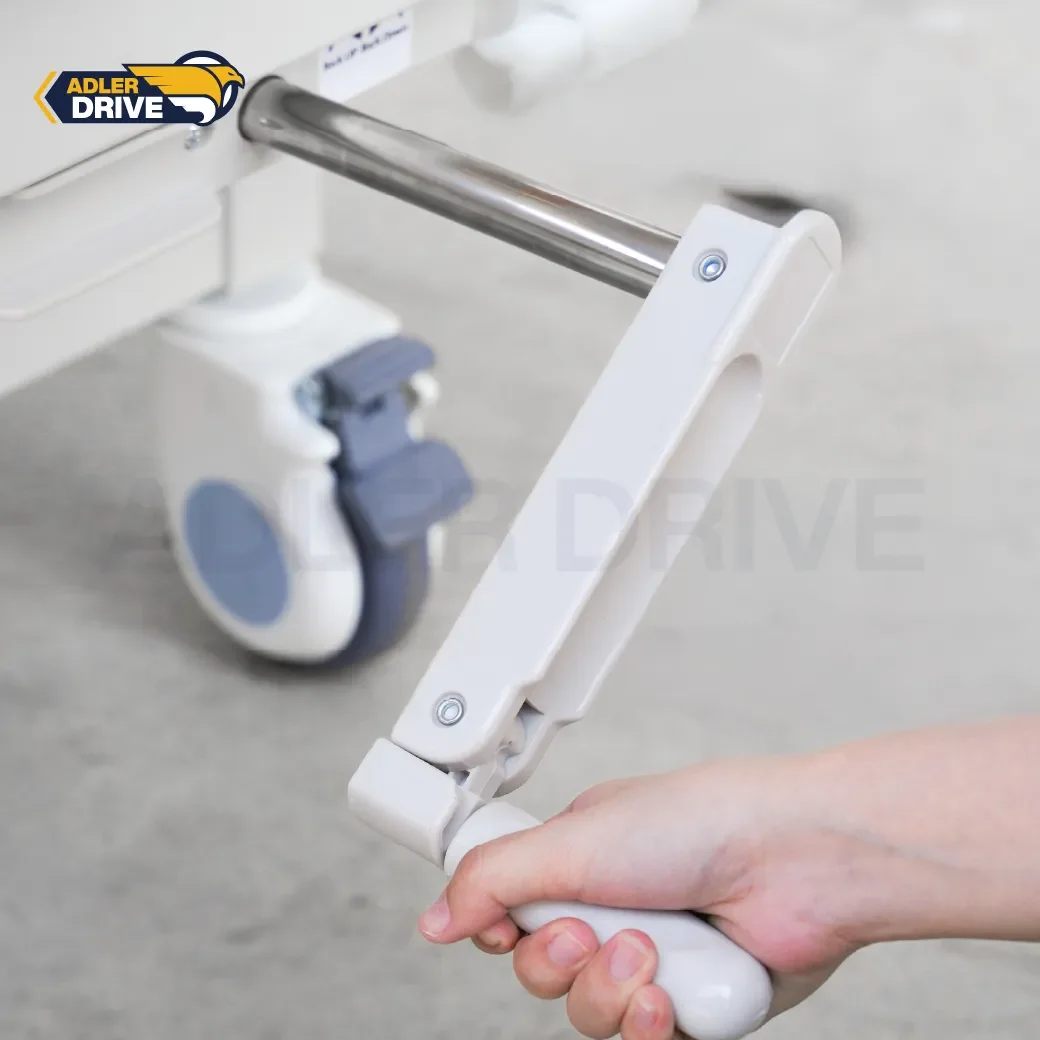

• The crank handle is made of plastic. (Acrylonitrile Butadiene Styrene, ABS) is strong, durable, and lightweight. The mechanism itself is made of strong and durable aluminum for adjusting various levels.

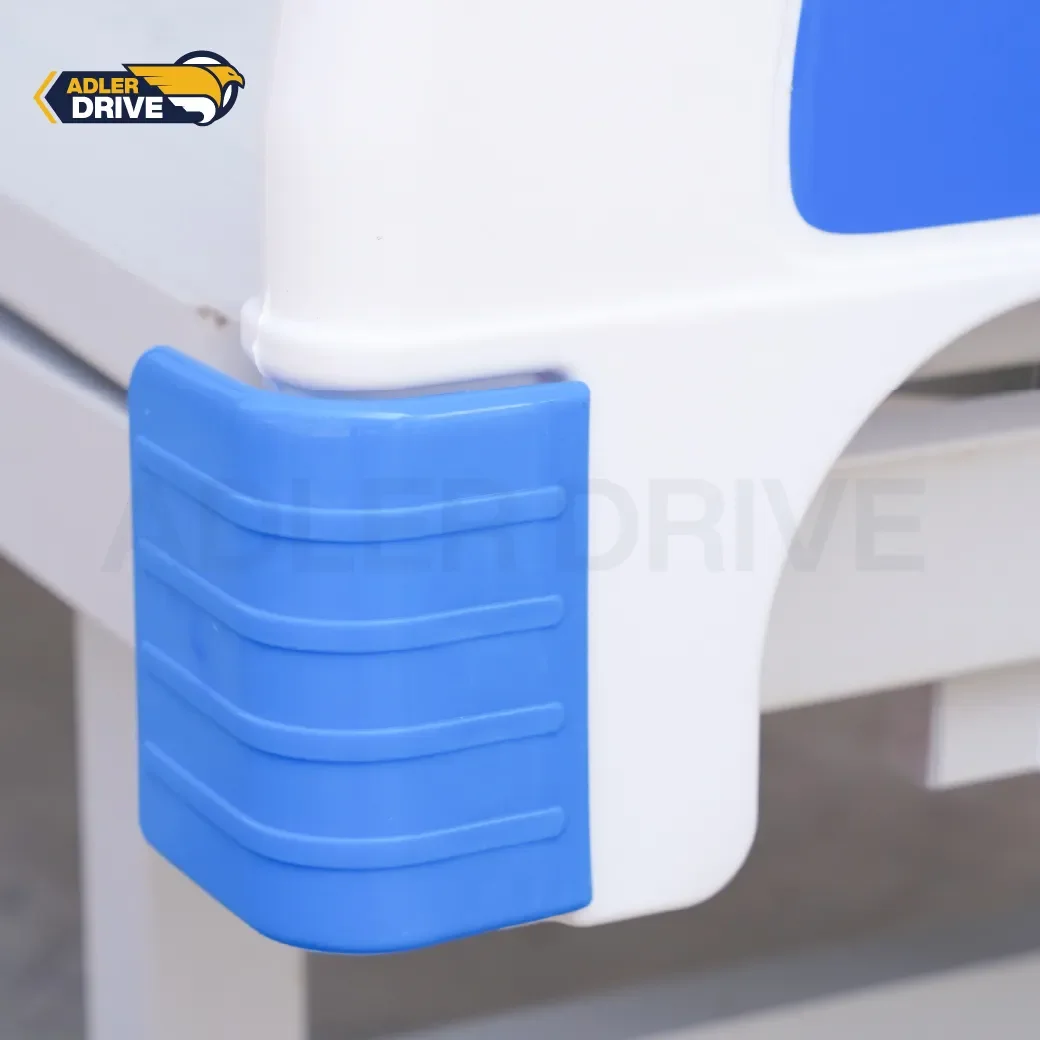

• There are plastic bumpers on all four corners to protect against impact. The four corners of the bed have slots for inserting IV poles for convenient use.

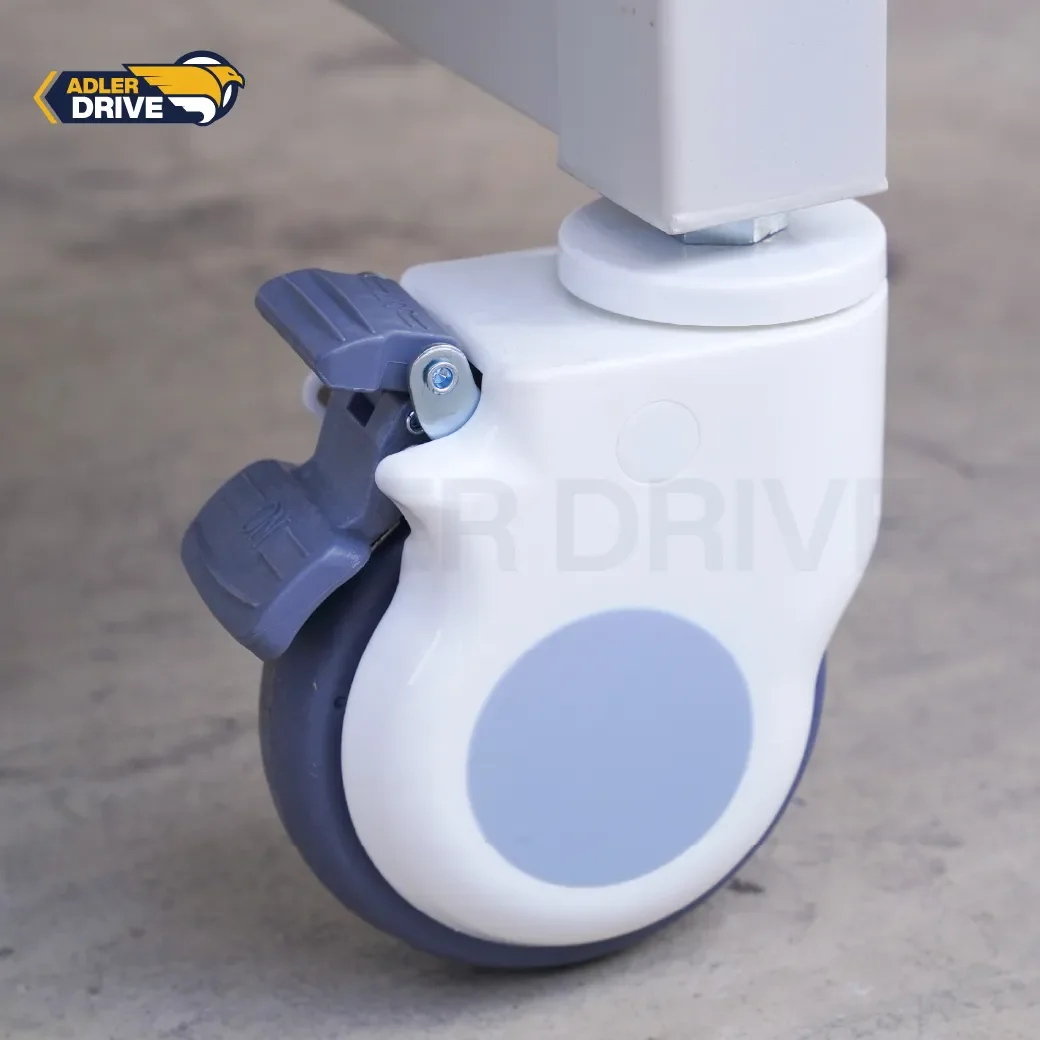

• The wheels have a diameter of approximately 5 inches and are made of high-quality synthetic rubber with independent locking systems, totaling 4 wheels.
  It comes with an adjustable IV pole, ranging from 115 - 200 ± 5 centimeters, with a total of 4 hooks for hanging.

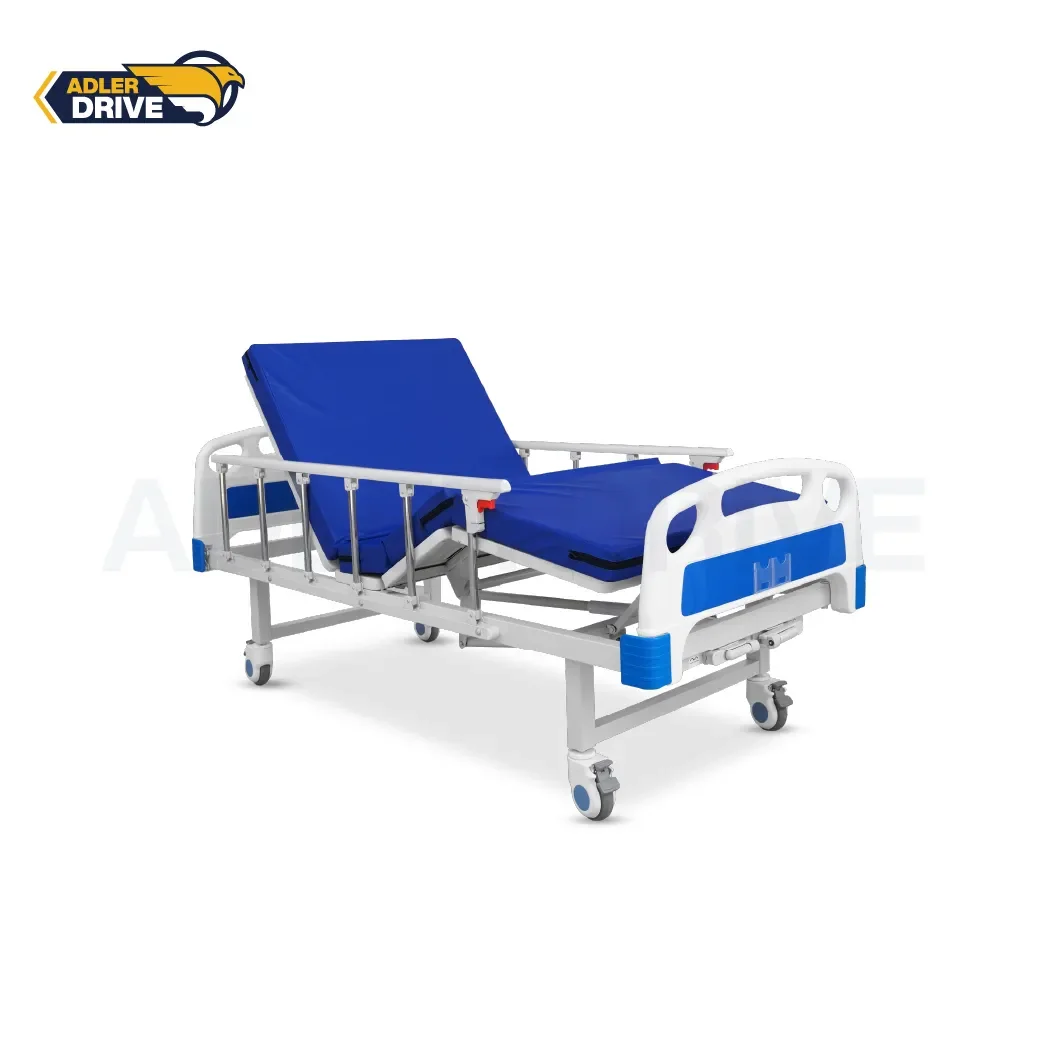

  Bed Adjustment Functions

  The Huaren HR-S06 features 4 manual adjustment functions:

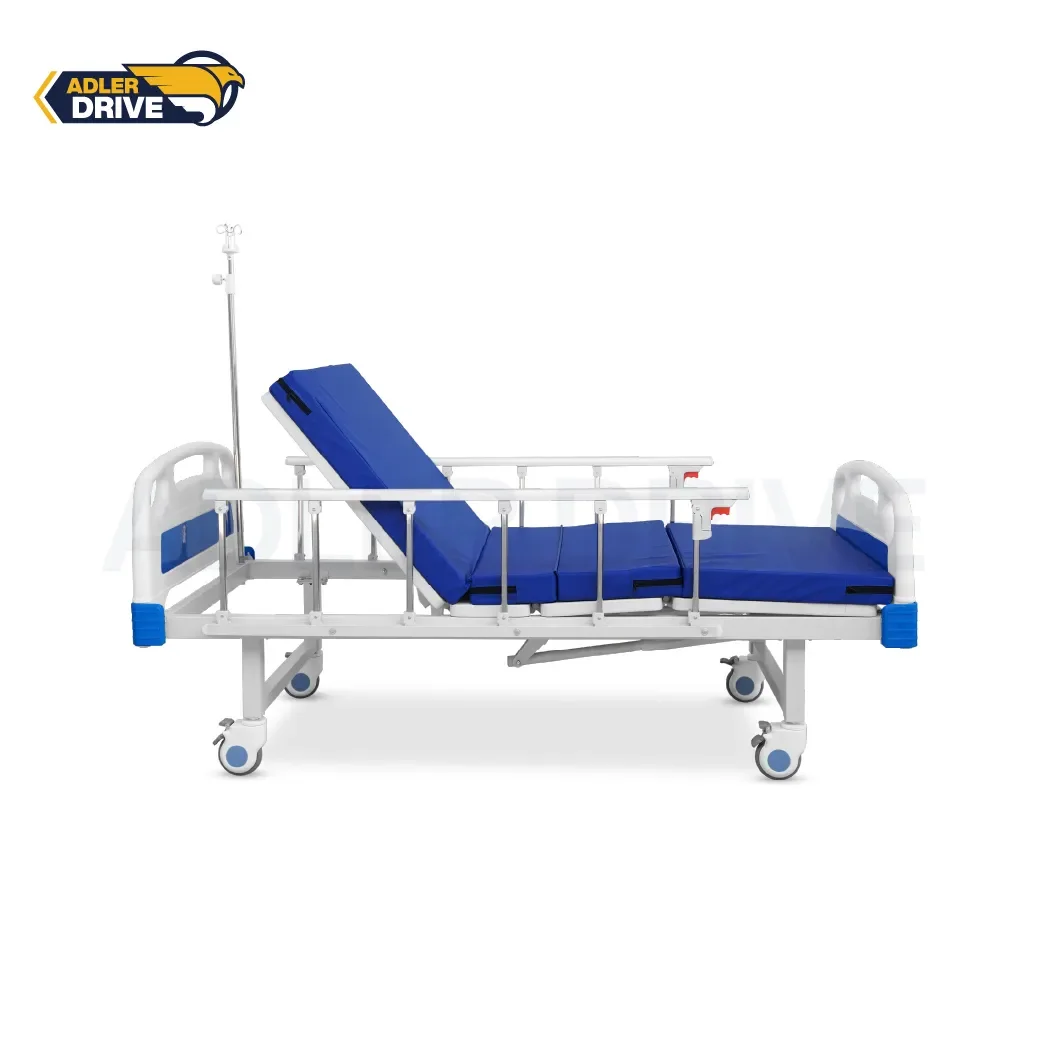

• Backrest Adjustment: 0–80° ±5°

• Knee Section Adjustment: 0–35° ±5°


(This is a two-function patient bed; the bed height is not adjustable.)

• Warranty Coverage: 6-year warranty for the bed structure and 5-year warranty for the Turning Mechanism Warranty

• Dedicated service center and technical support team available for product consultation and usage guidance

• Onsite Service available exclusively in Bangkok and metropolitan areas
  Nationwide delivery across Thailand available

• Cash on Delivery (COD) service available only in Bangkok and metropolitan areas

• Manufactured in an internationally certified factory, trusted and widely accepted by healthcare facilities worldwide

• Certified to CE standards and ISO 13485:2003 medical device quality management system
